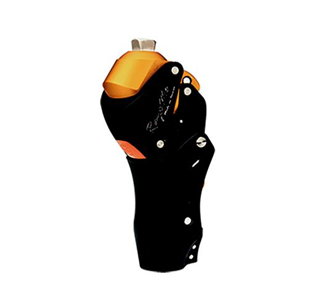

C-RAY-RP1 — Rayome pneumatic knee joint with four-bar linkage
C-RAY-RP1 is a pneumatic, four-axis (polycentric) knee joint designed for users with moderate to high activity levels. Equipped with an efficient pneumatic cylinder, it allows independent adjustment of flexion and extension resistance, enabling smooth and natural gait. The 4-bar linkage design provides high stability during the stance phase and increased user safety. Made from aluminum and titanium alloy, it combines durability with a modern, lightweight construction.
TECHNICAL DATA
| Material | Aluminum / Titanium Alloy |
| Max. flexion angle | 159 |
| Type | Pneumatic |
| Mobility level | 2–3 |
| Product weight [kg] | 1.15 |
| Max. user weight [kg] | 125.00 |
| Waterproof | ✗ |
| Warranty | 2 years |
DELIVERY SET
