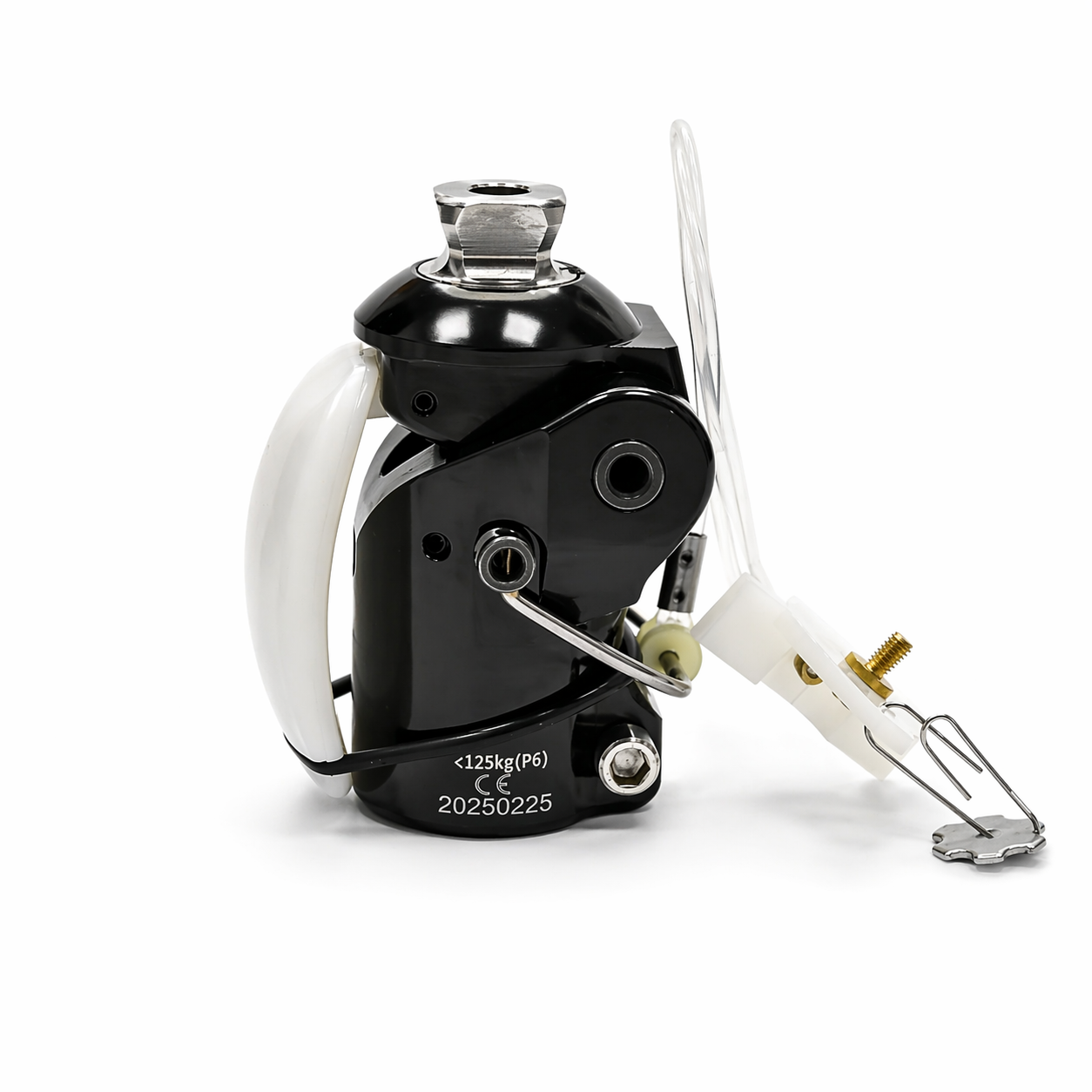

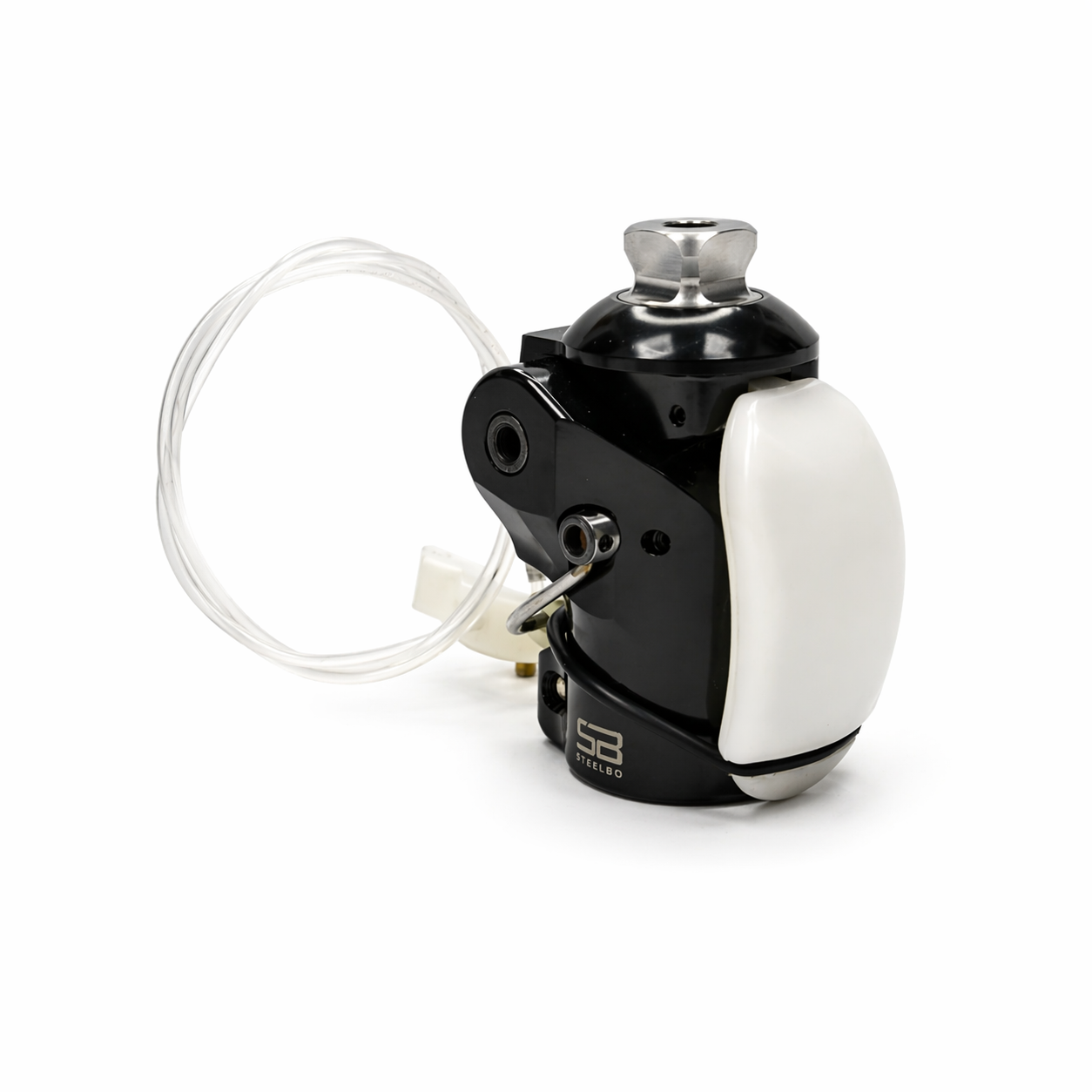

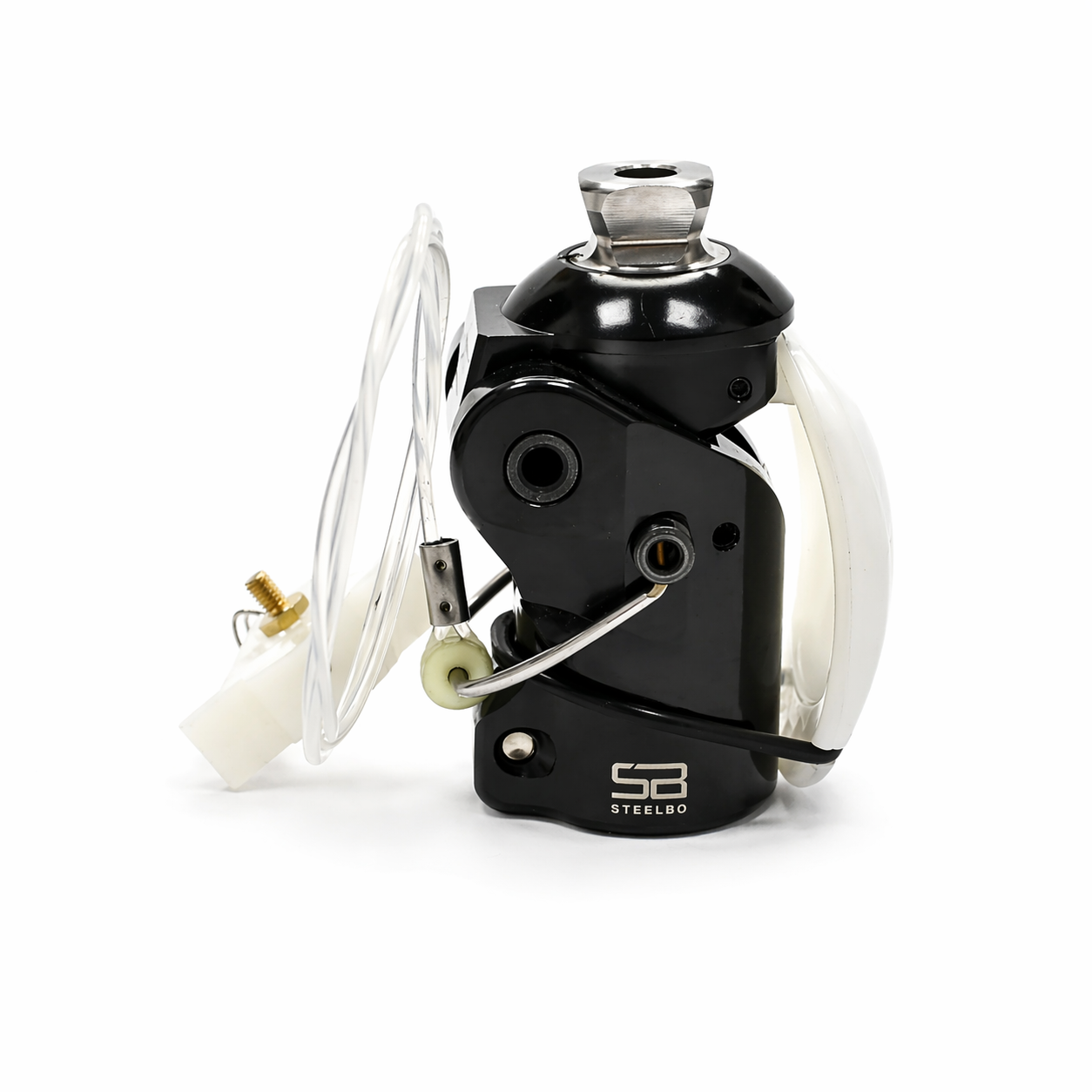

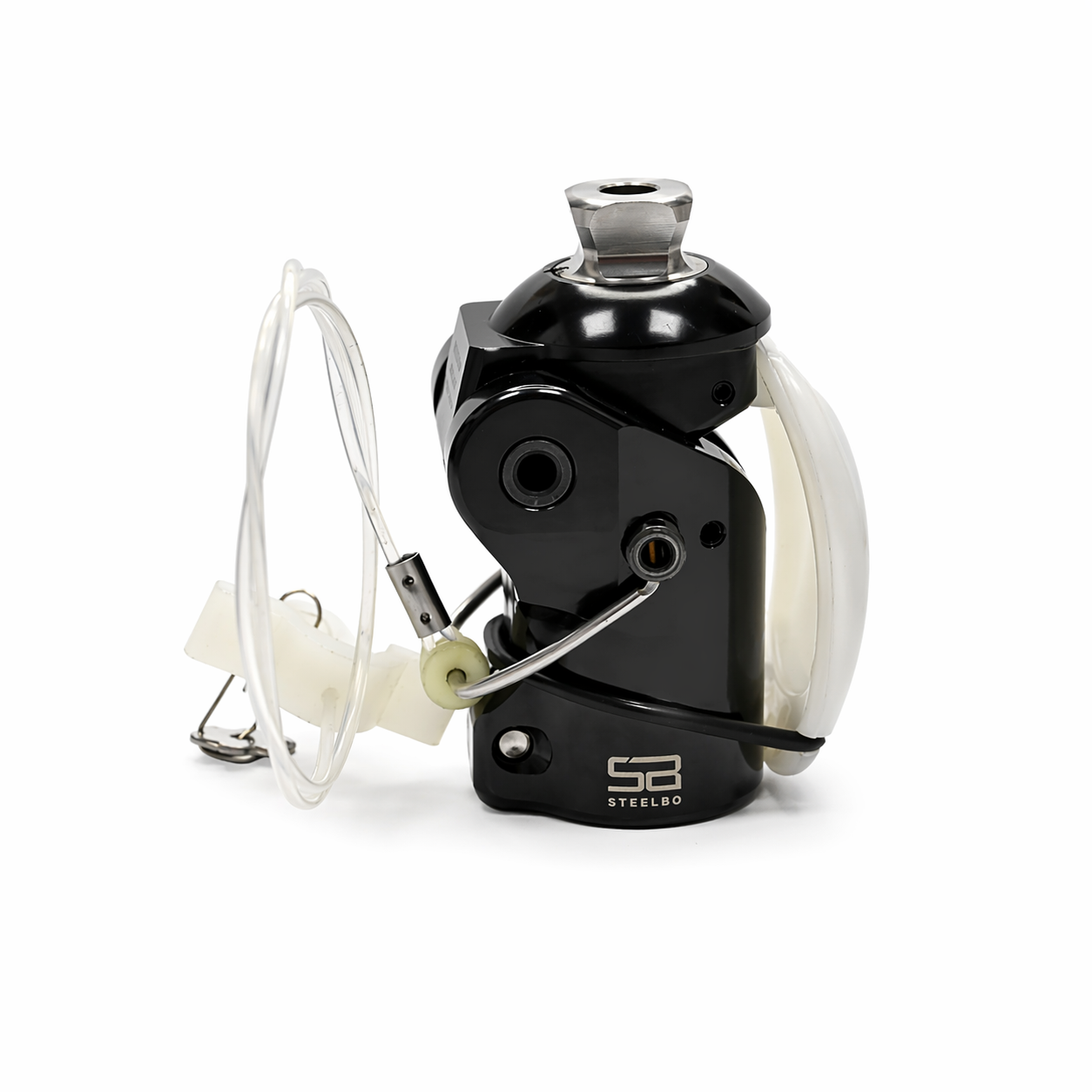

M1.ZZ — Mechanical Waterproof Knee Joint with Lock
The M1.ZZ is a mechanical, waterproof knee joint with a lock, designed for lower limb prostheses. Made of aluminum and stainless steel, it ensures durability and reliability in everyday use. The locking mechanism keeps the knee securely locked in an extended position while standing and allows for safe unlocking while walking. This product is designed for users with an activity level of 1–2 and a body weight of up to 125 kg.
TECHNICAL DATA
| Material | Aluminum / Stainless steel |
| Max. flexion angle | 140 |
| Type | Mechanical |
| Mobility level | 1–2 |
| Product weight [kg] | 0.29 |
| Max. user weight [kg] | 125.00 |
| Waterproof | ✓ |
| Warranty | 3 years |
DELIVERY SET
